A-shaped hair remova

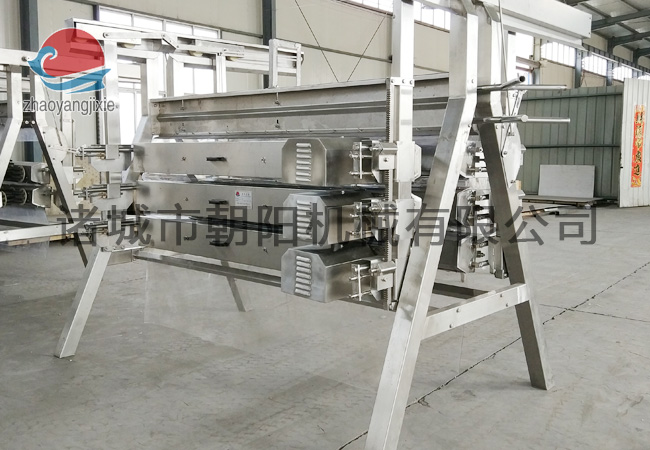

A-shaped hair removal machine
Name：A-shaped vertical fine hair removal machine
Details
A-type vertical fine hair removal machine is one of the main equipment used in the production of large and medium poultry slaughtering enterprises. It needs to be used together with A-type vertical coarse hair removal machine in the production process to achieve good results. The equipment has the advantages of improving the production efficiency of enterprises, reducing the labor cost of enterprises, simple operation, easy maintenance, good slaughtering effect and so on. Once the equipment came out, it has been widely welcomed by large and medium-sized poultry slaughtering enterprises.The frame and cover of A-shaped vertical fine hair removal machine are all made of stainless steel, with clean and beautiful appearance. 6 rows of depilation boxes, 10 depilation discs in each row. There are 6 sets of 2.2kW motors in total. For box δ= 3.0 ㎜ stainless steel plate, frame 90 × ninety × 3、100 × fifty × 3. Fabrication of stainless steel square tube. The depilation disc shaft is equipped with two waterproof devices. When the flat belt drive of the film base works, the working box drives smoothly, the adjustment is flexible and convenient, the adjustment of the lifting mechanism is flexible and convenient, and the reset is automatically centered. Each row of depilation boxes can be adjusted up and down, front and back, and the angle of the box can be adjusted in three dimensions, which is convenient for the daily maintenance and cleaning of the workshop. The guiding mechanism can make the birds enter the body smoothly and position relatively. The washing mechanism can wash off the feathers at any time, so as to make the equipment and birds safe and healthy and avoid cross contamination.
Technical parameters of A-shaped vertical fine hair removal machine:
Production capacity: 6000 PCS / h
Motor power: 2.2kw
Number of depilation discs: 60
Overall dimension: 3300 × two thousand and two hundred × 2200mm (length, width and height)
